Model KR-25H-V | Chassis KR255-1004 | Mitsubishi 6D16 diesel | 4WD selectable

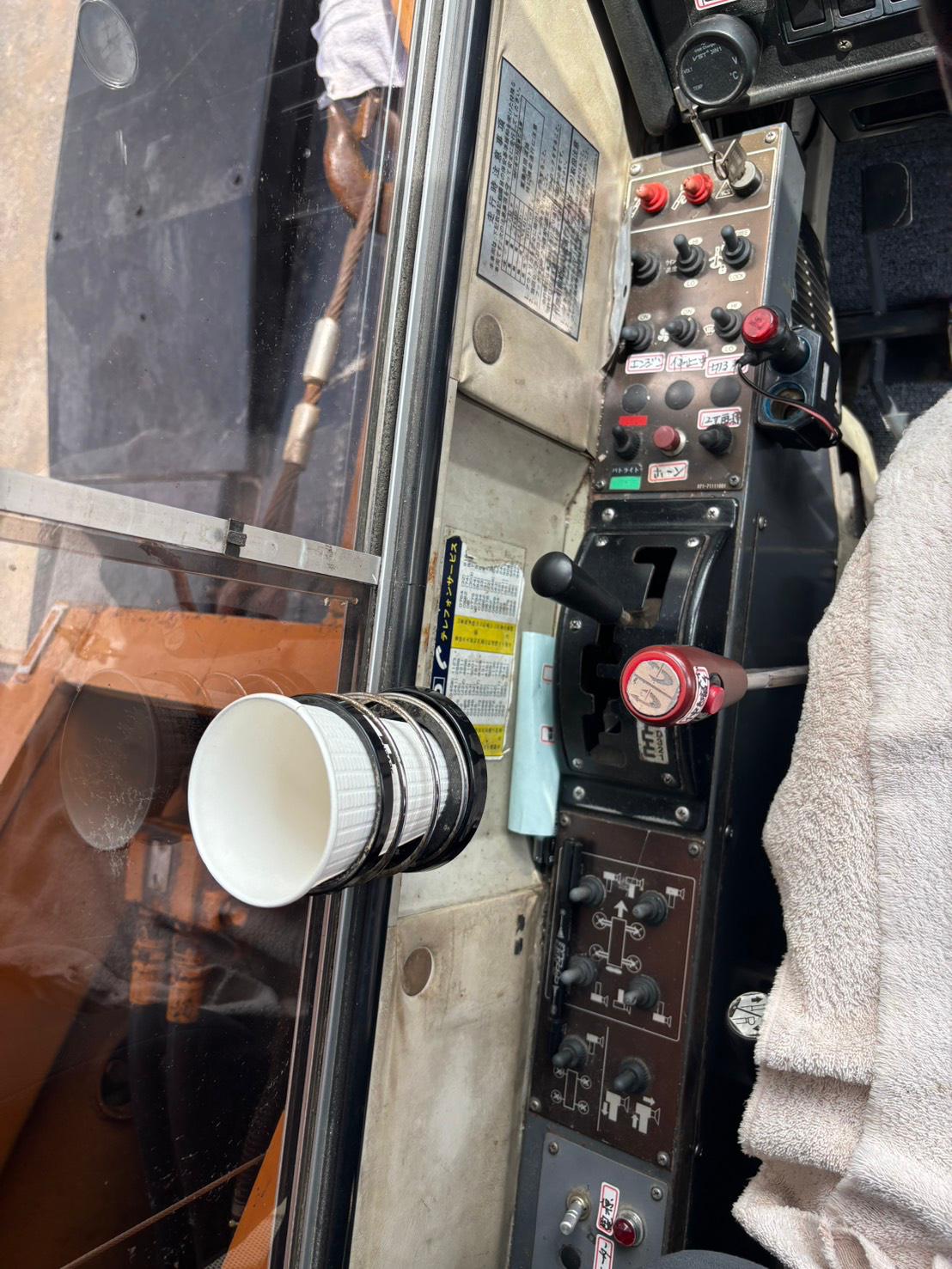

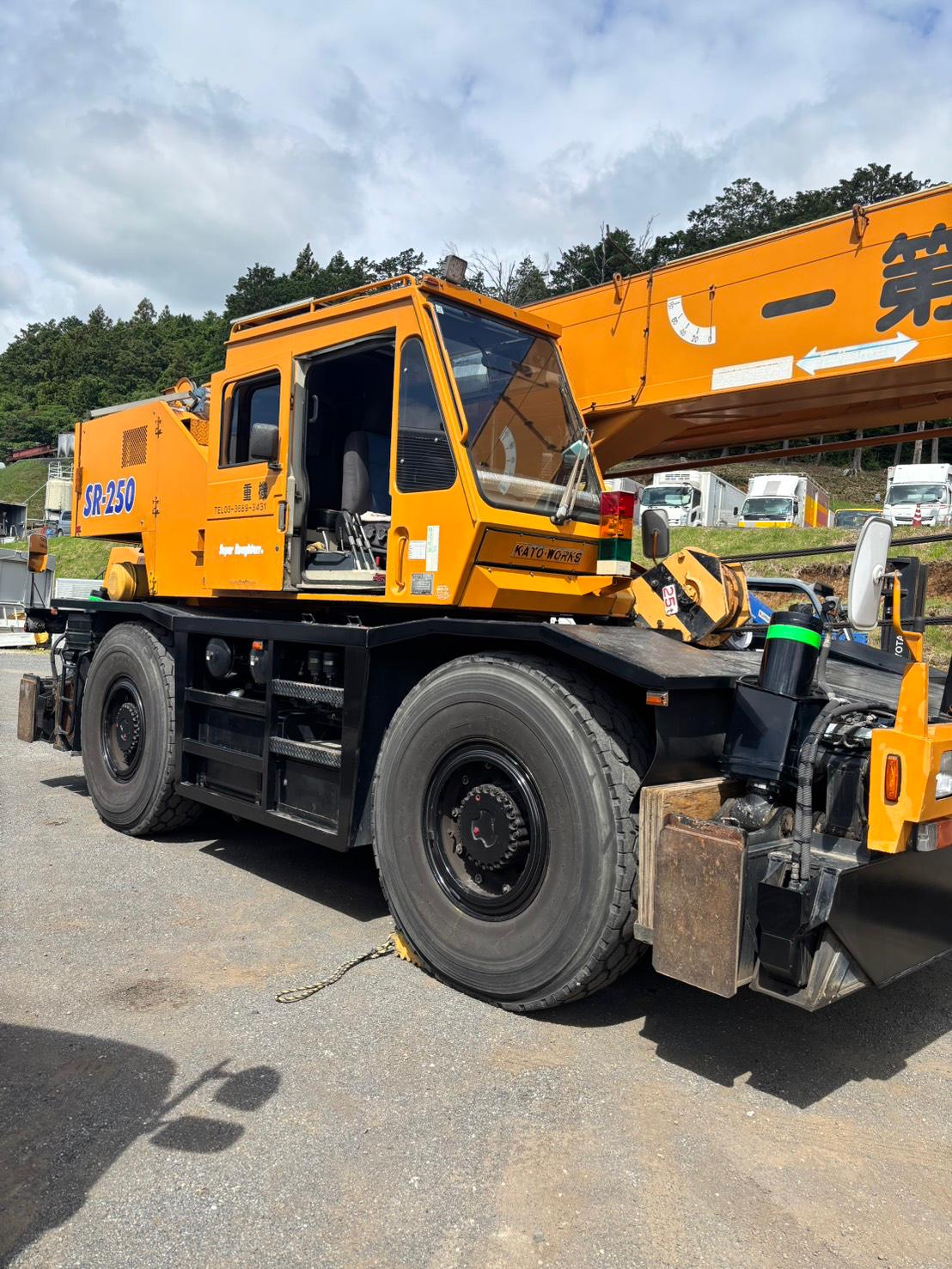

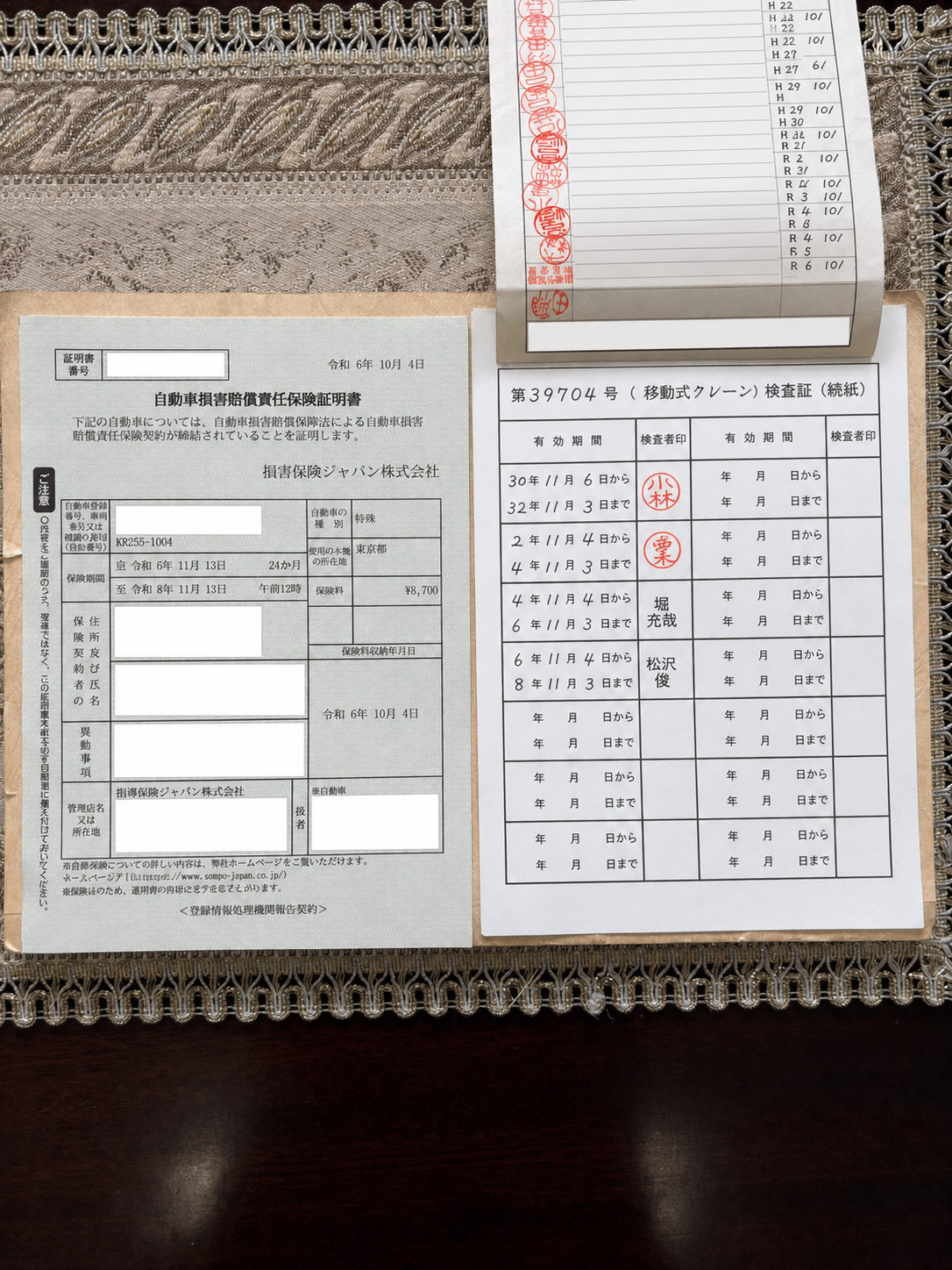

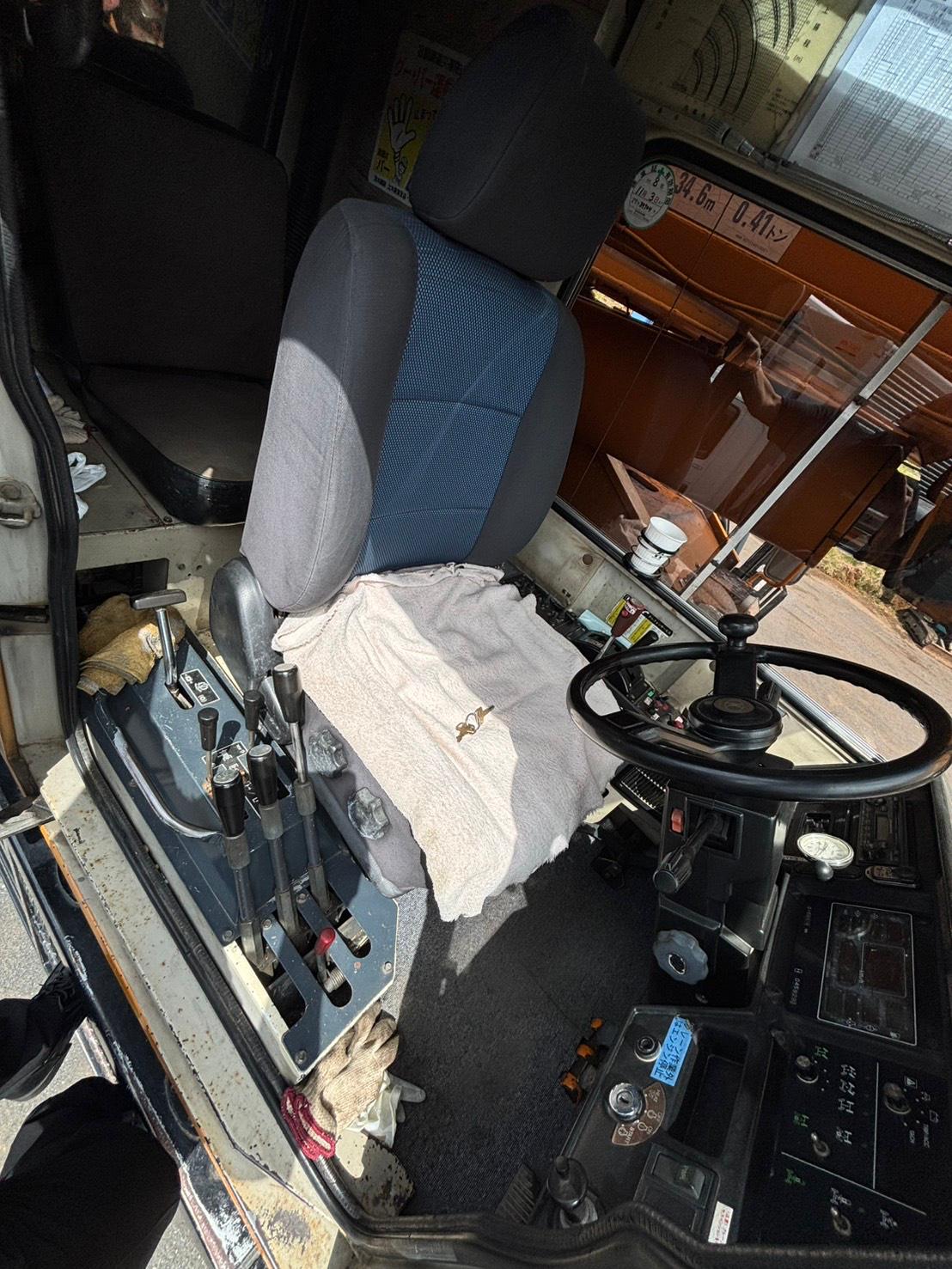

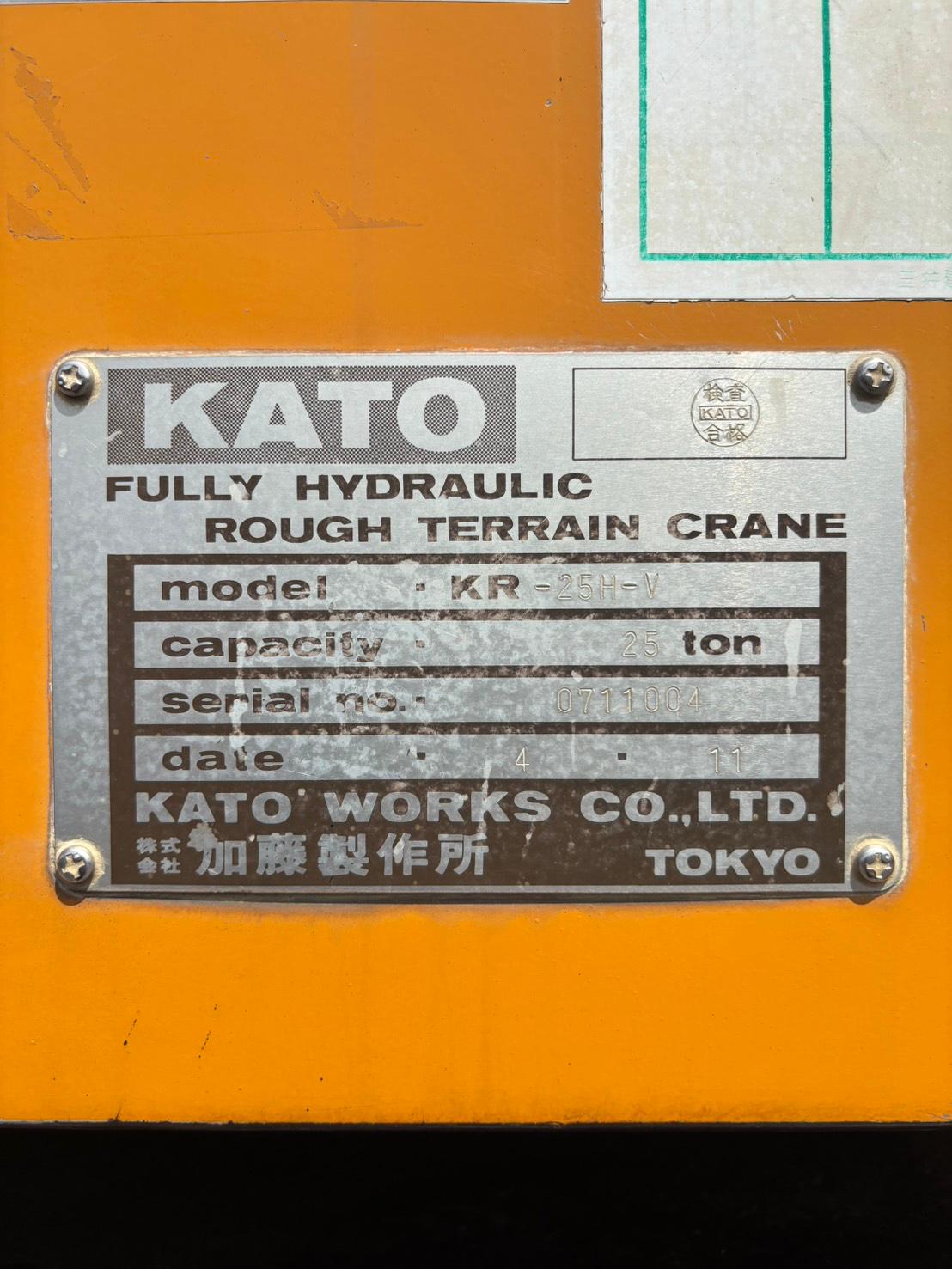

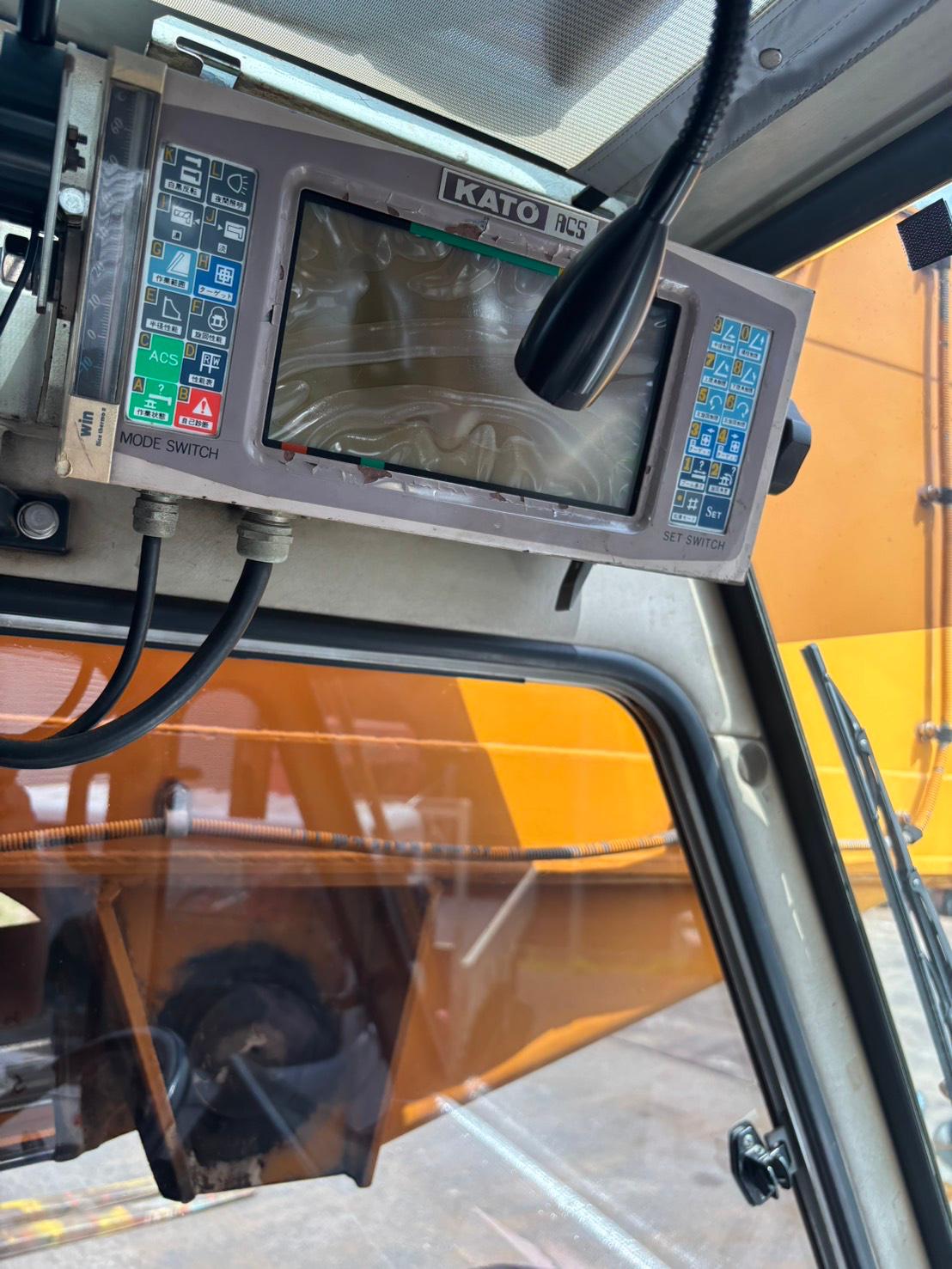

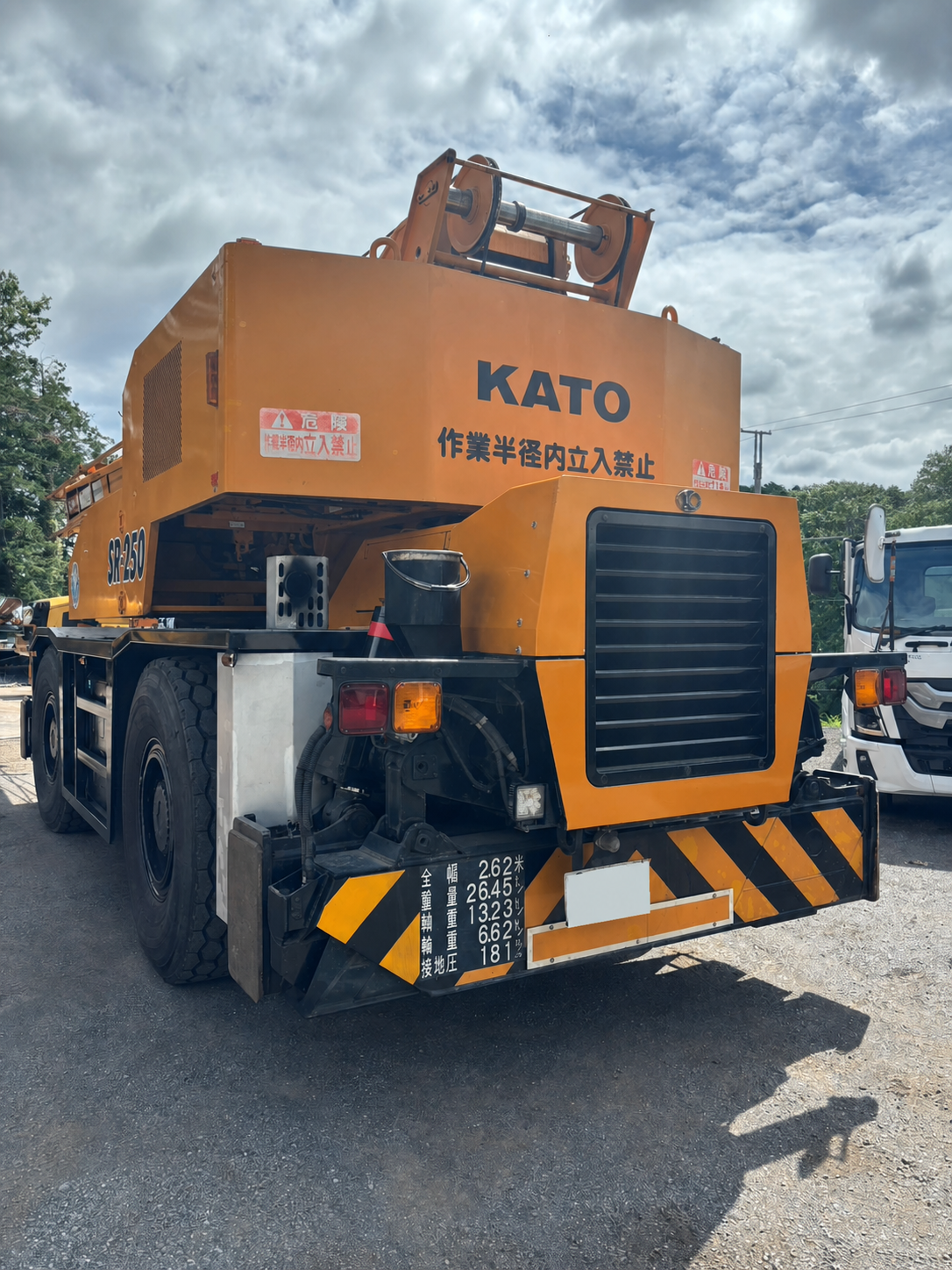

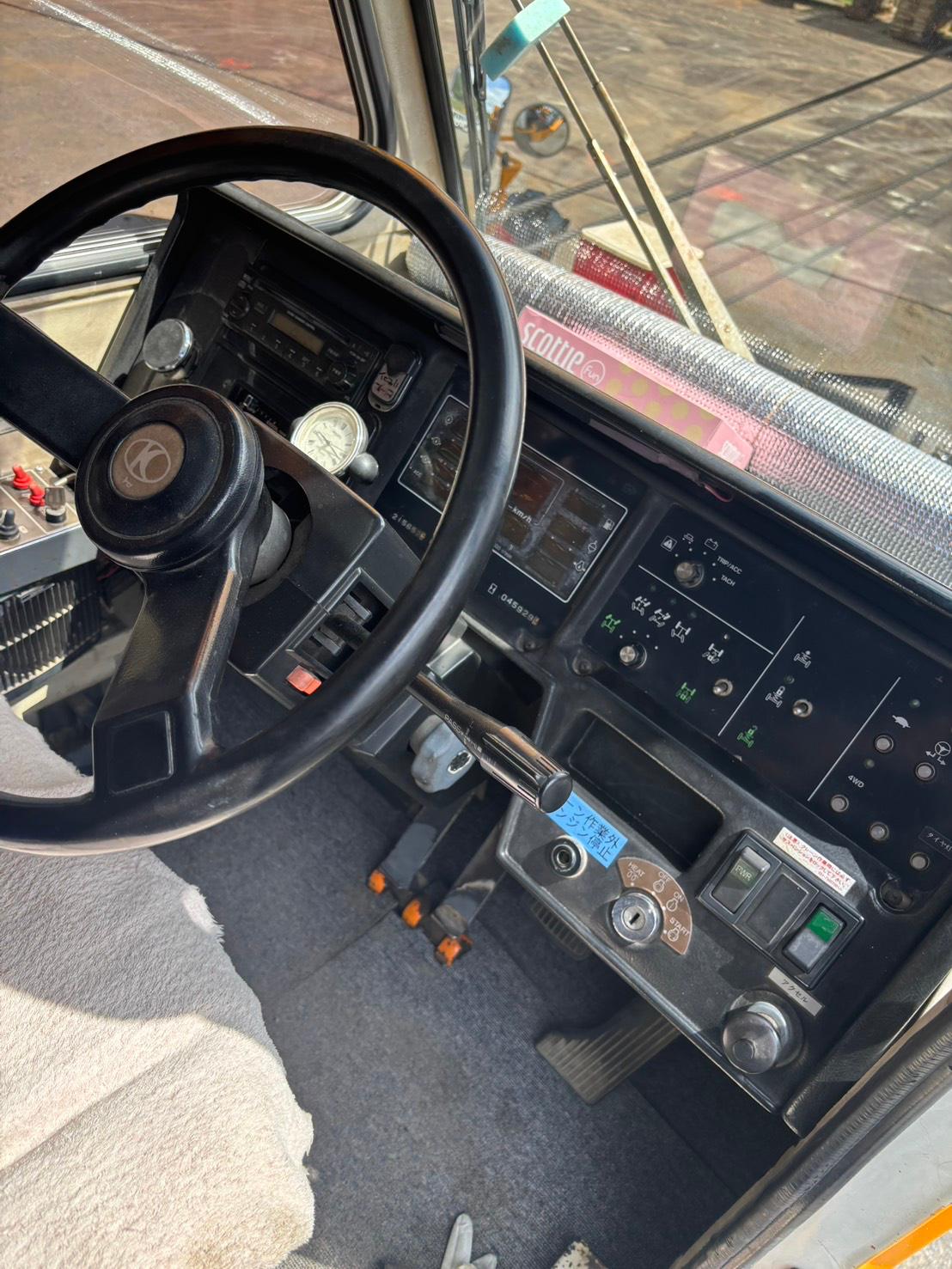

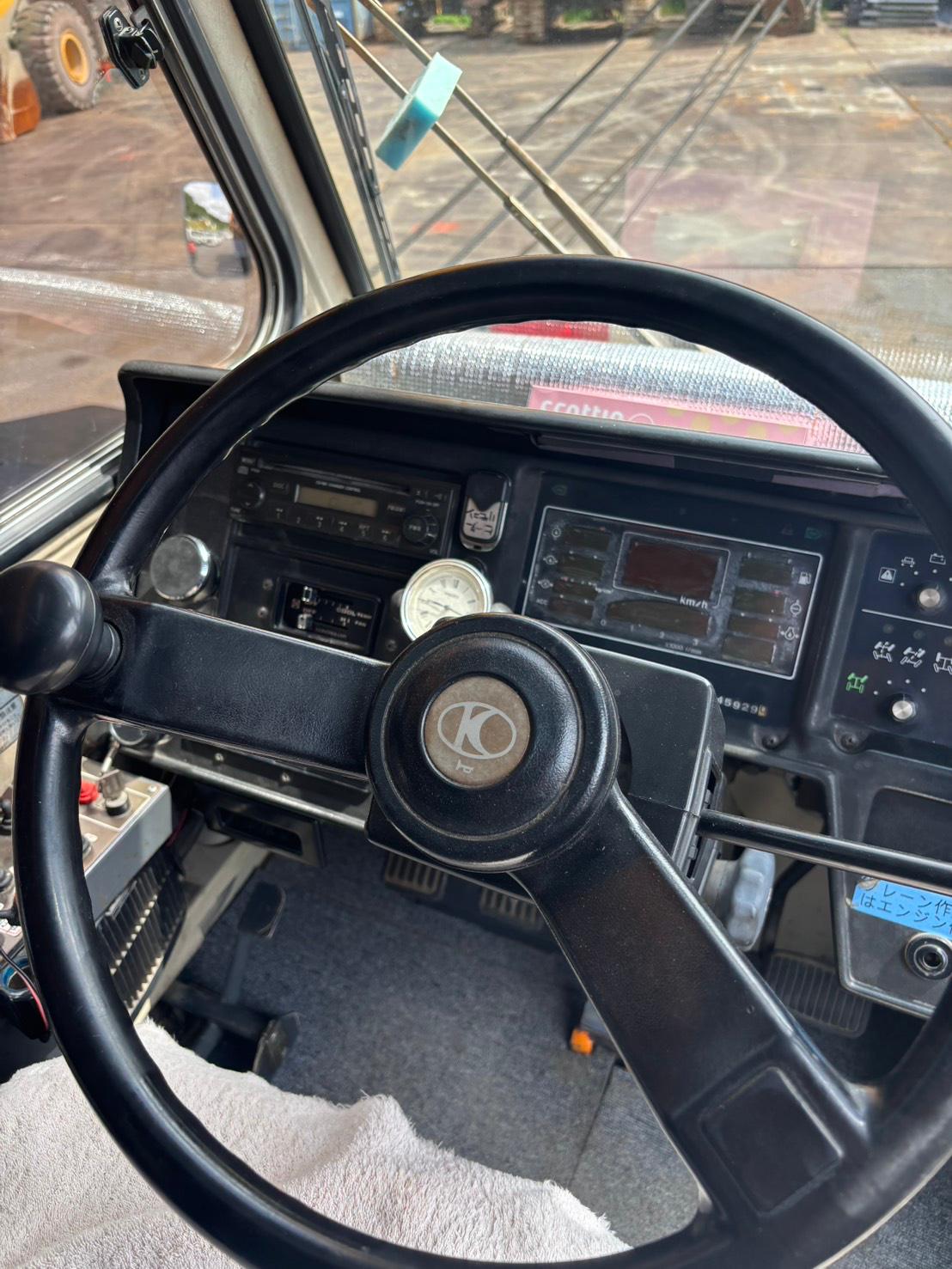

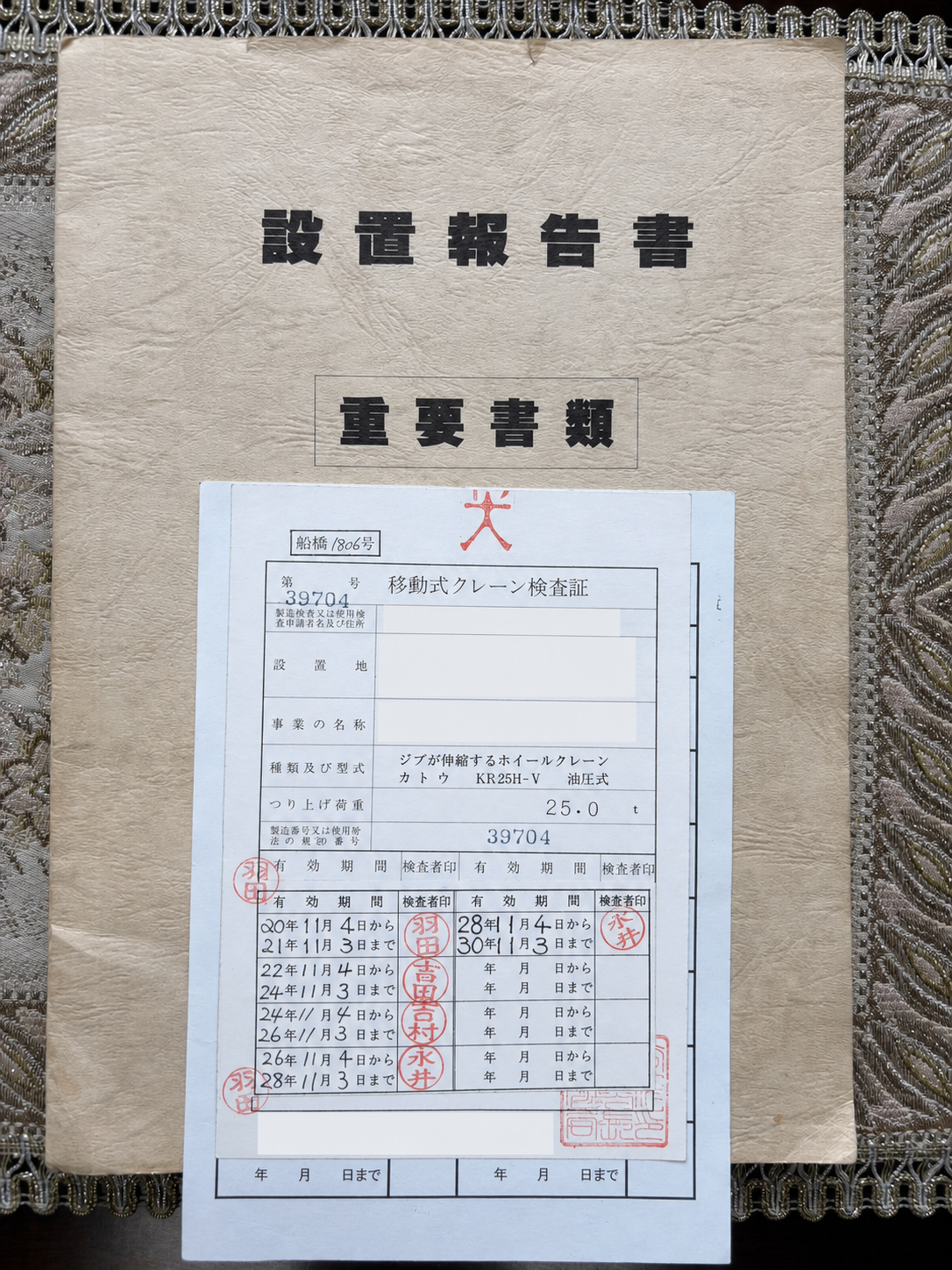

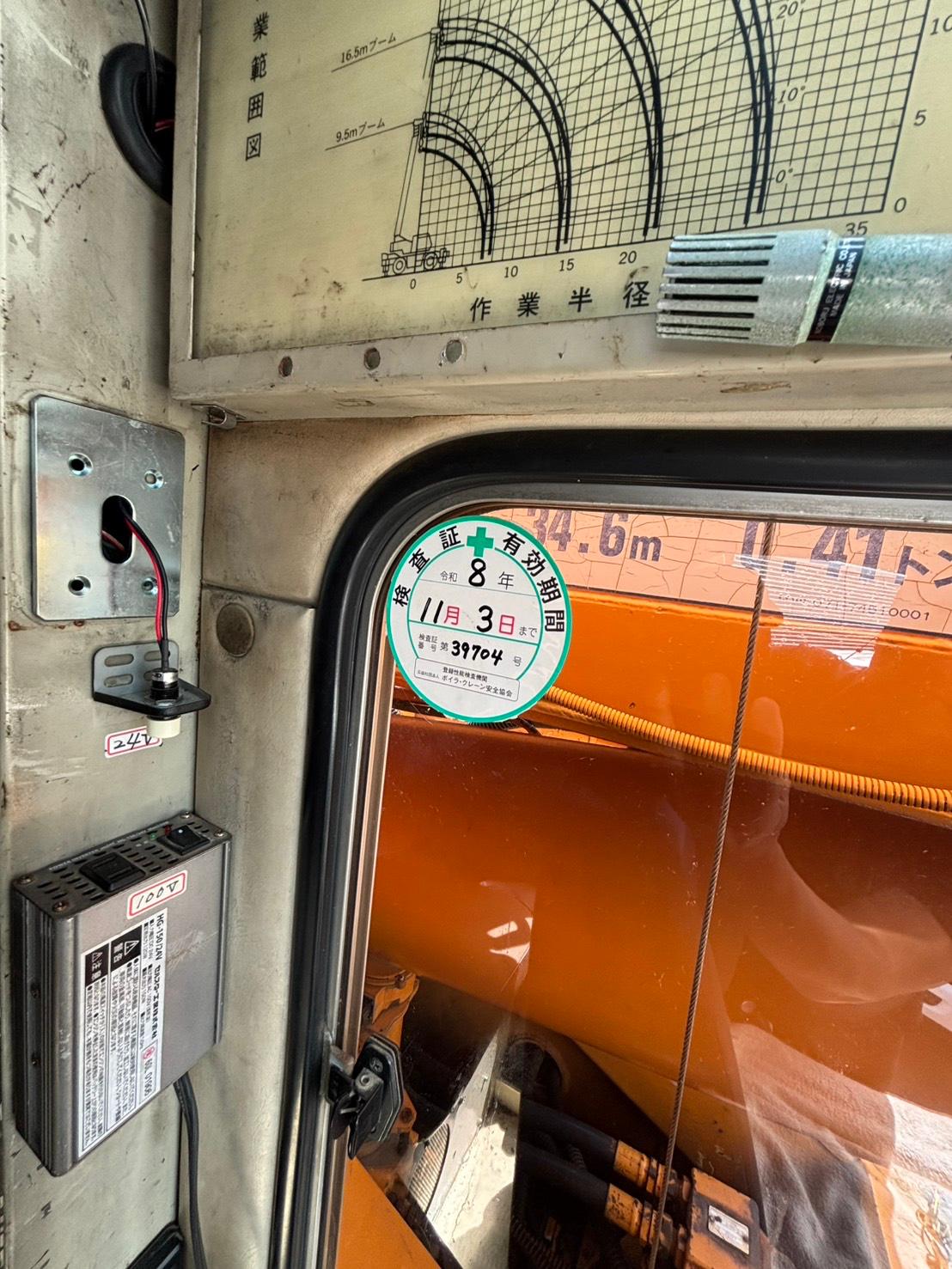

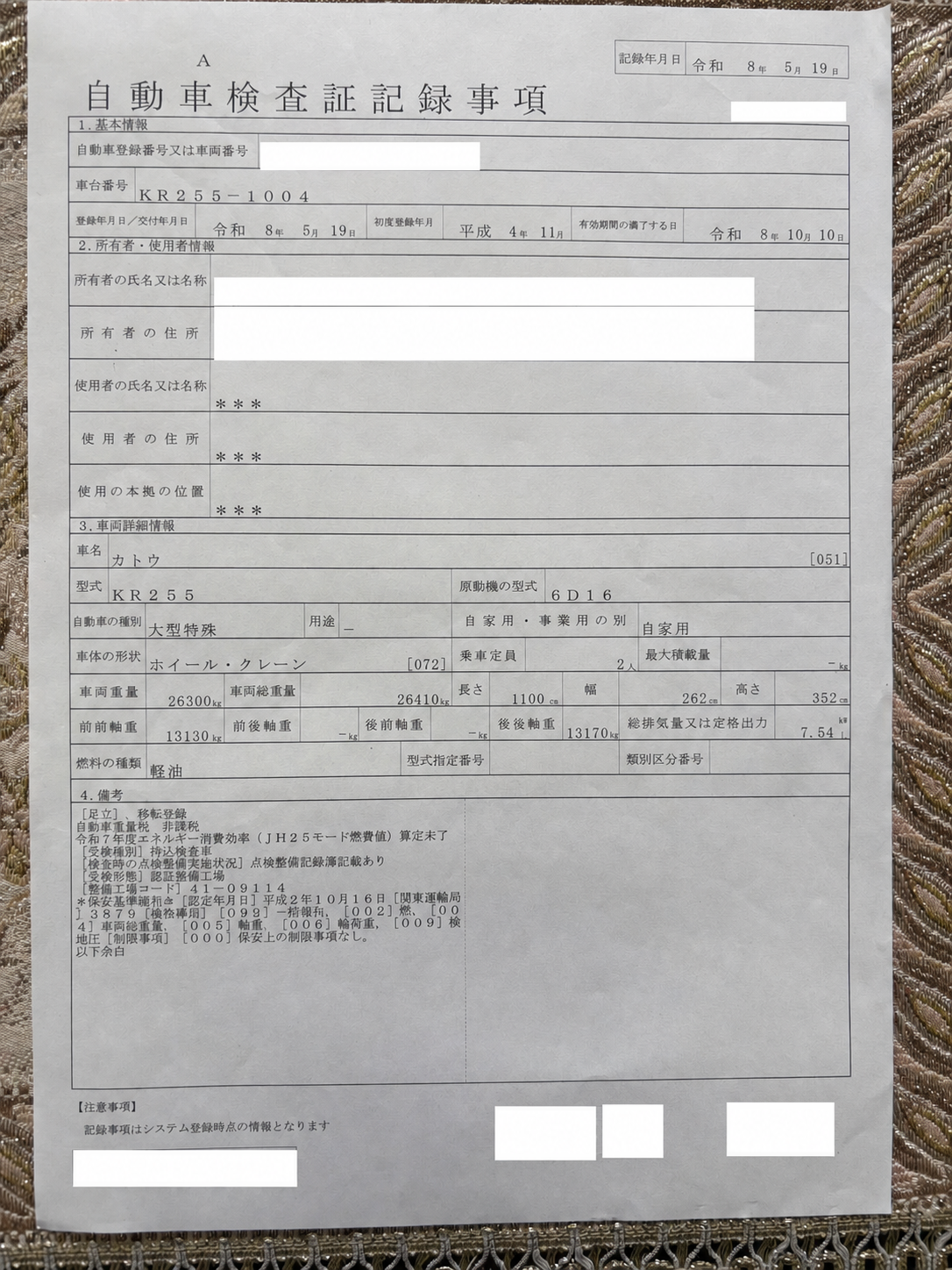

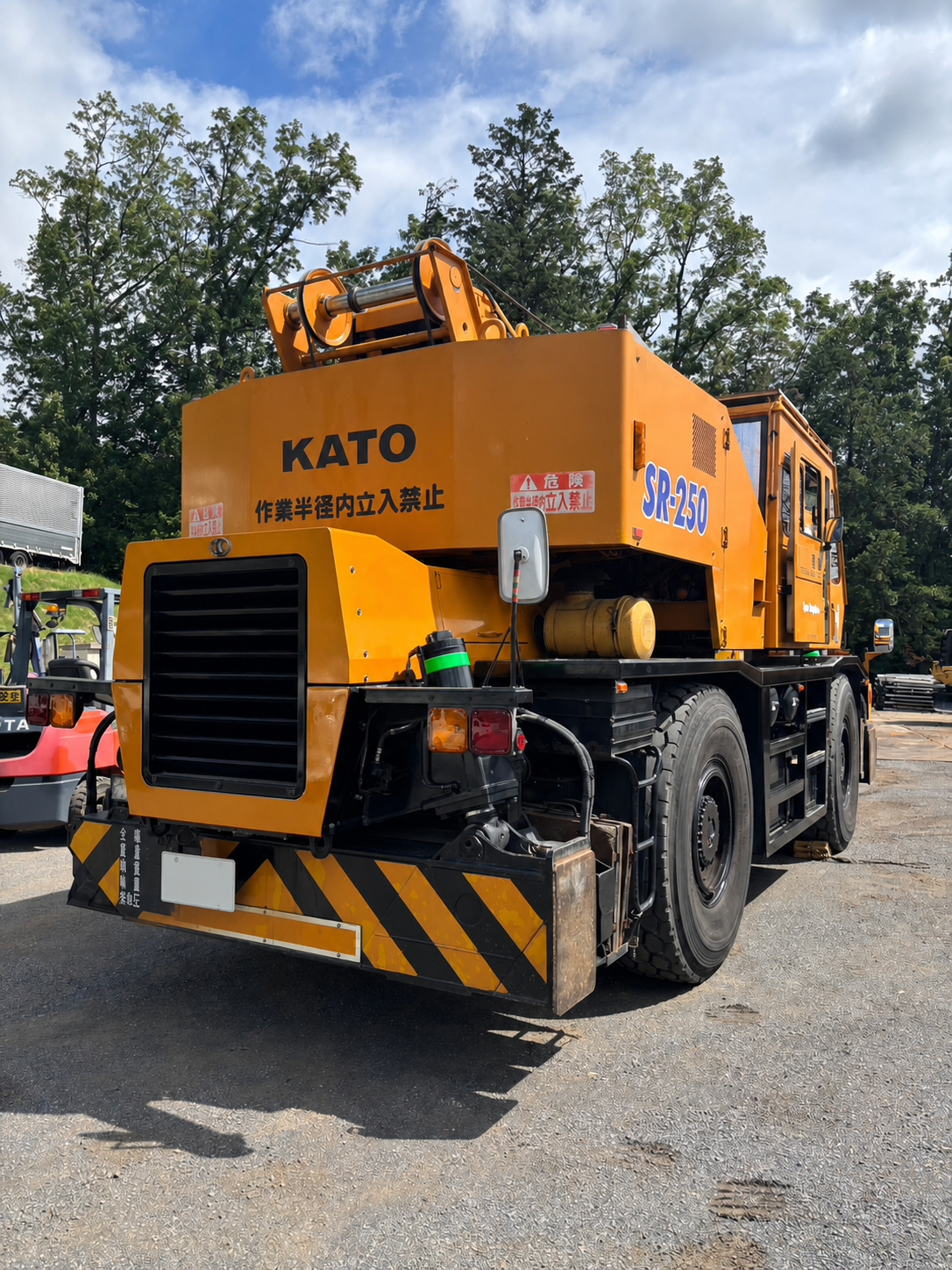

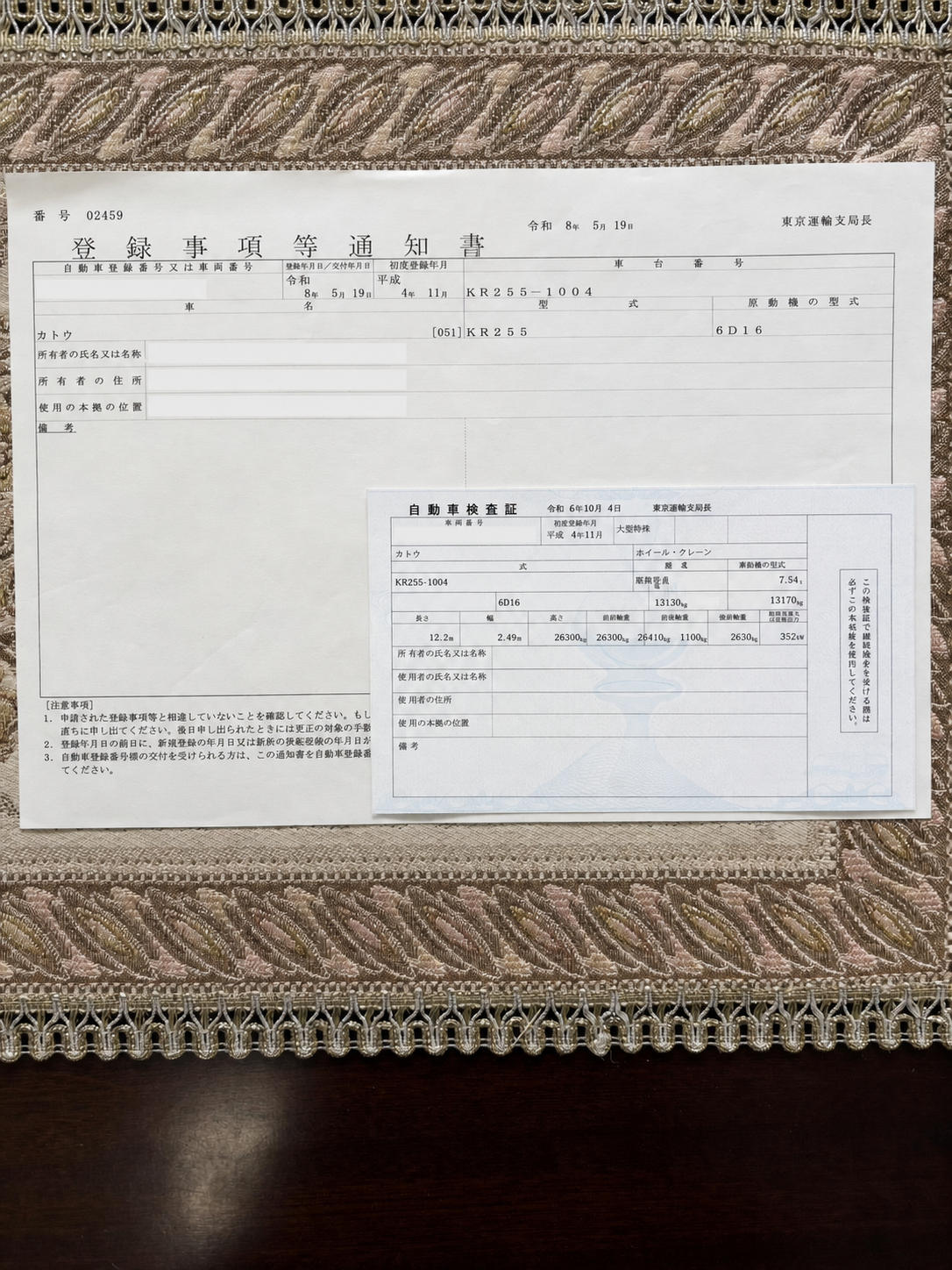

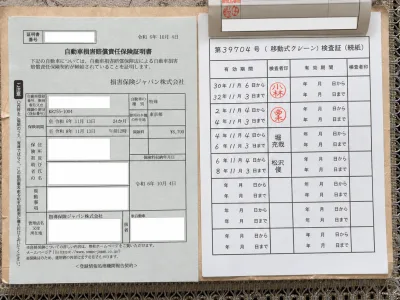

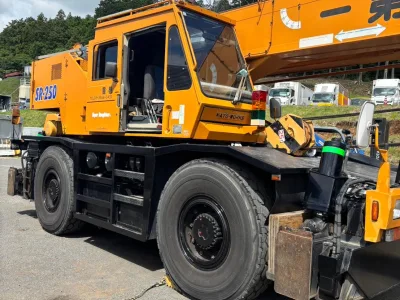

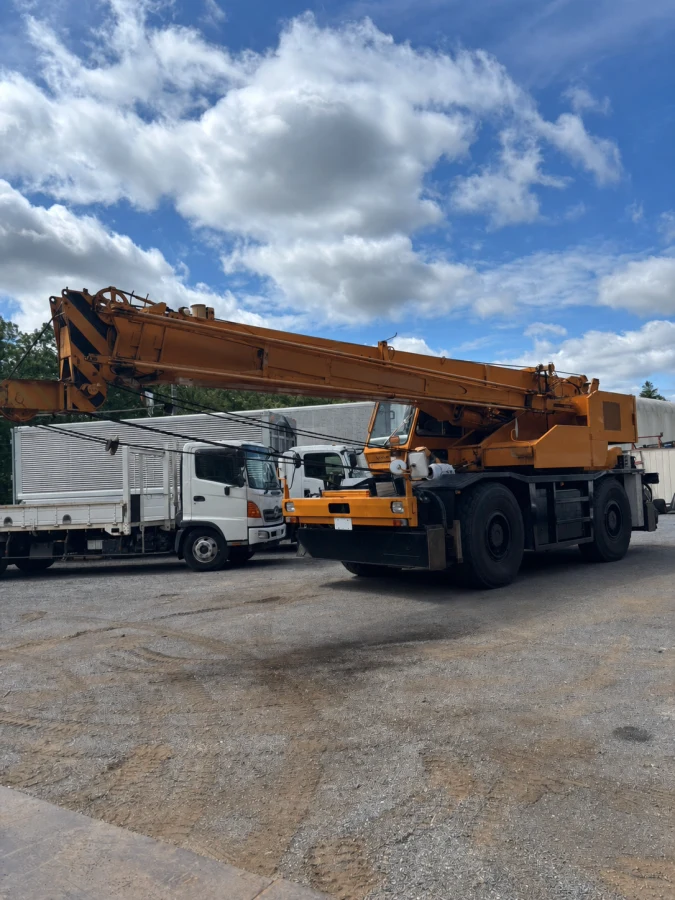

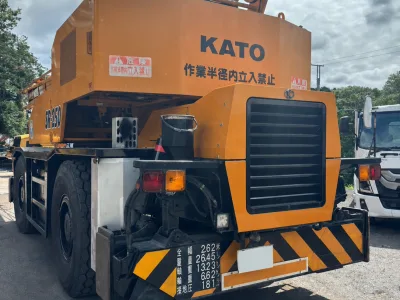

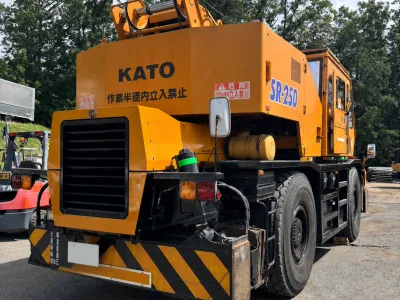

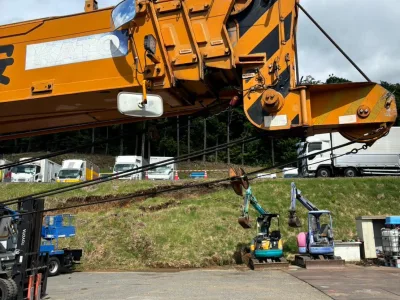

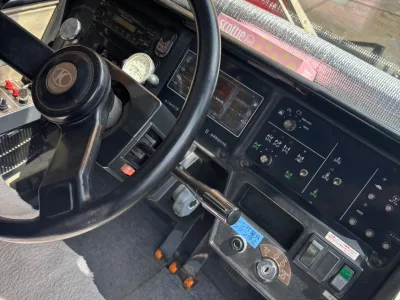

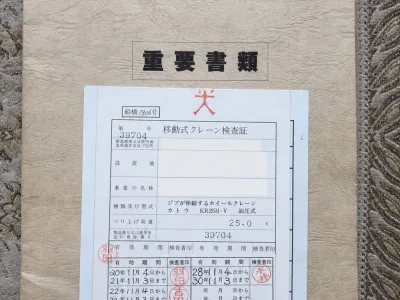

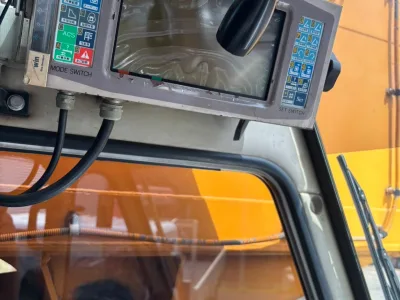

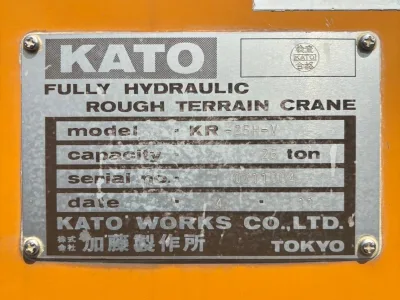

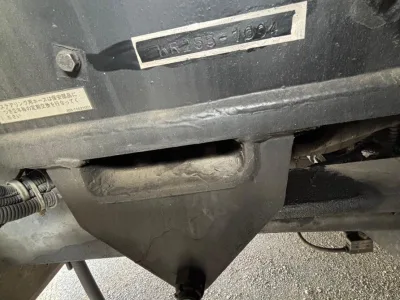

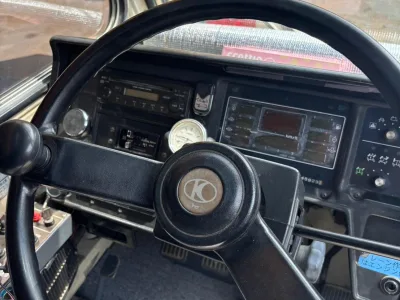

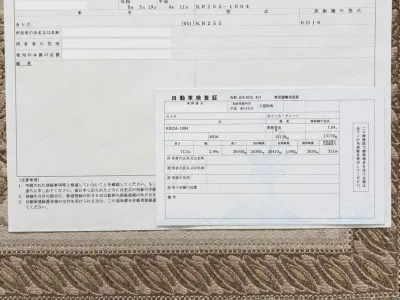

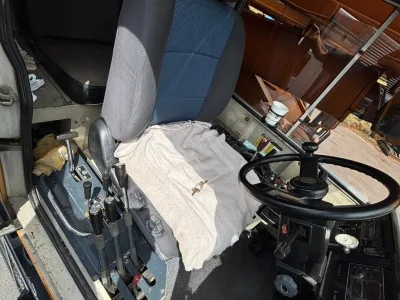

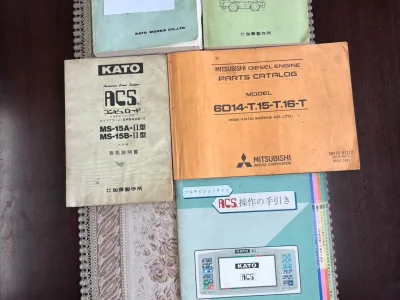

This KATO SR-250 is a Japanese-market 25-ton fully hydraulic rough-terrain crane. The machine identification plate, chassis stamping, dashboard, Japanese registration record and crane inspection documents were photographed for this listing. The crane is offered from Japan with worldwide export and shipping support from GSAT.
| Manufacturer | KATO Works Co., Ltd. |
|---|---|
| Commercial model | SR-250 |
| Crane model | KR-25H-V |
| Manufacturer serial number | 0711004 |

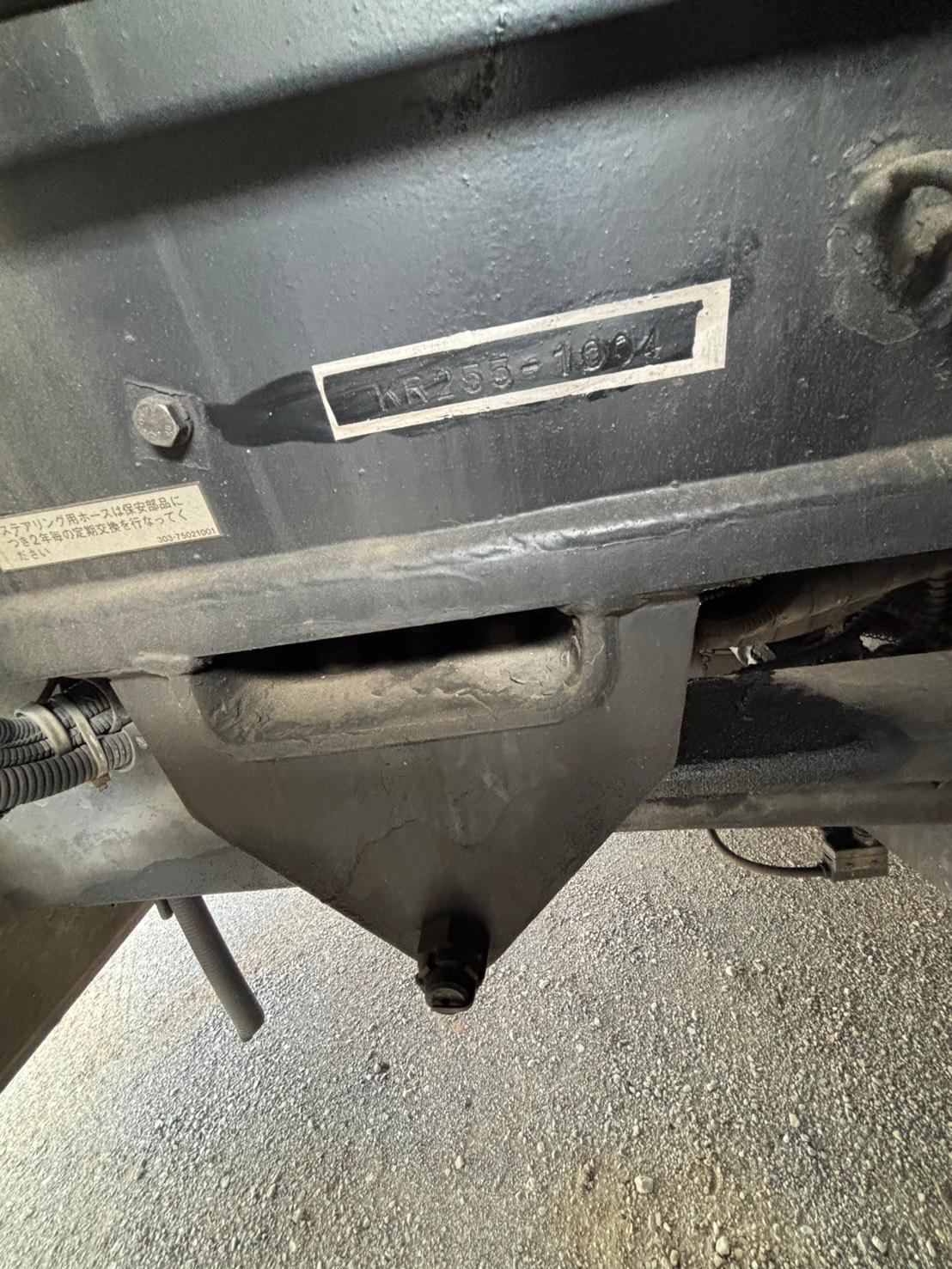

| Chassis / frame number | KR255-1004 |
| Production / first registration | November 1992 |
| Rated crane capacity | 25.0 tonnes |
| Engine | Mitsubishi 6D16 / 6D16T turbo-diesel |
| Fuel | Diesel |
| Drive | Selectable 4x2 / 4x4 |
| Steering / seats | Right-hand drive / 2 seats |
| Colour | Orange |

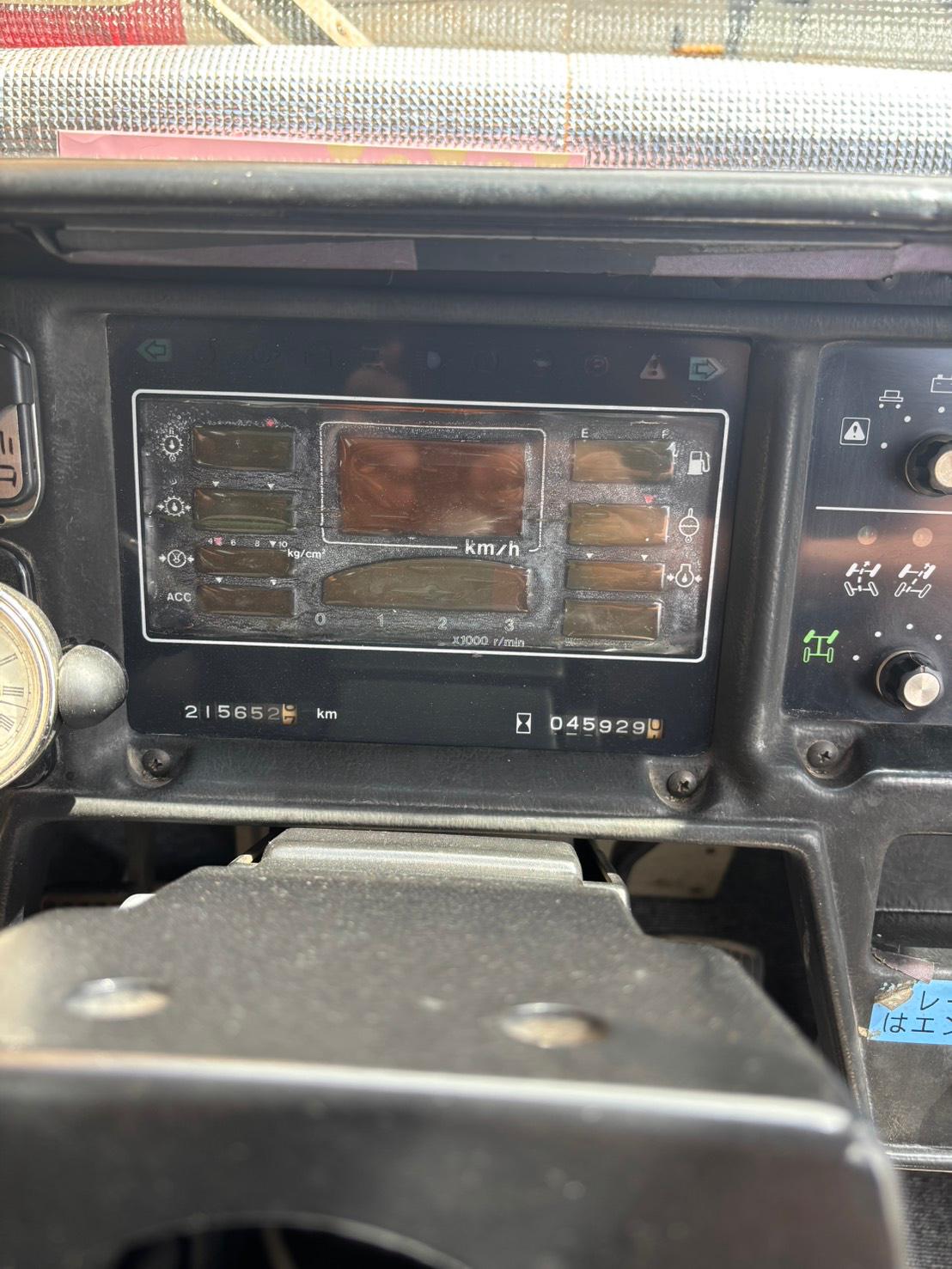

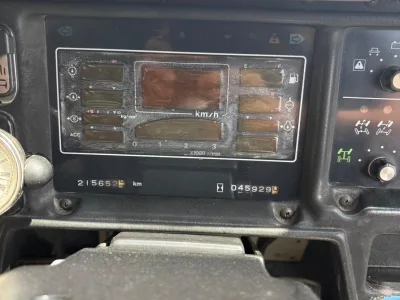

| Odometer shown | 21,565.2 km |
|---|---|
| Hour meter shown | 4,592.9 hours |
| Maximum rated load | 25.0 t x 3.5 m with 9.5 m boom and outriggers |
|---|---|

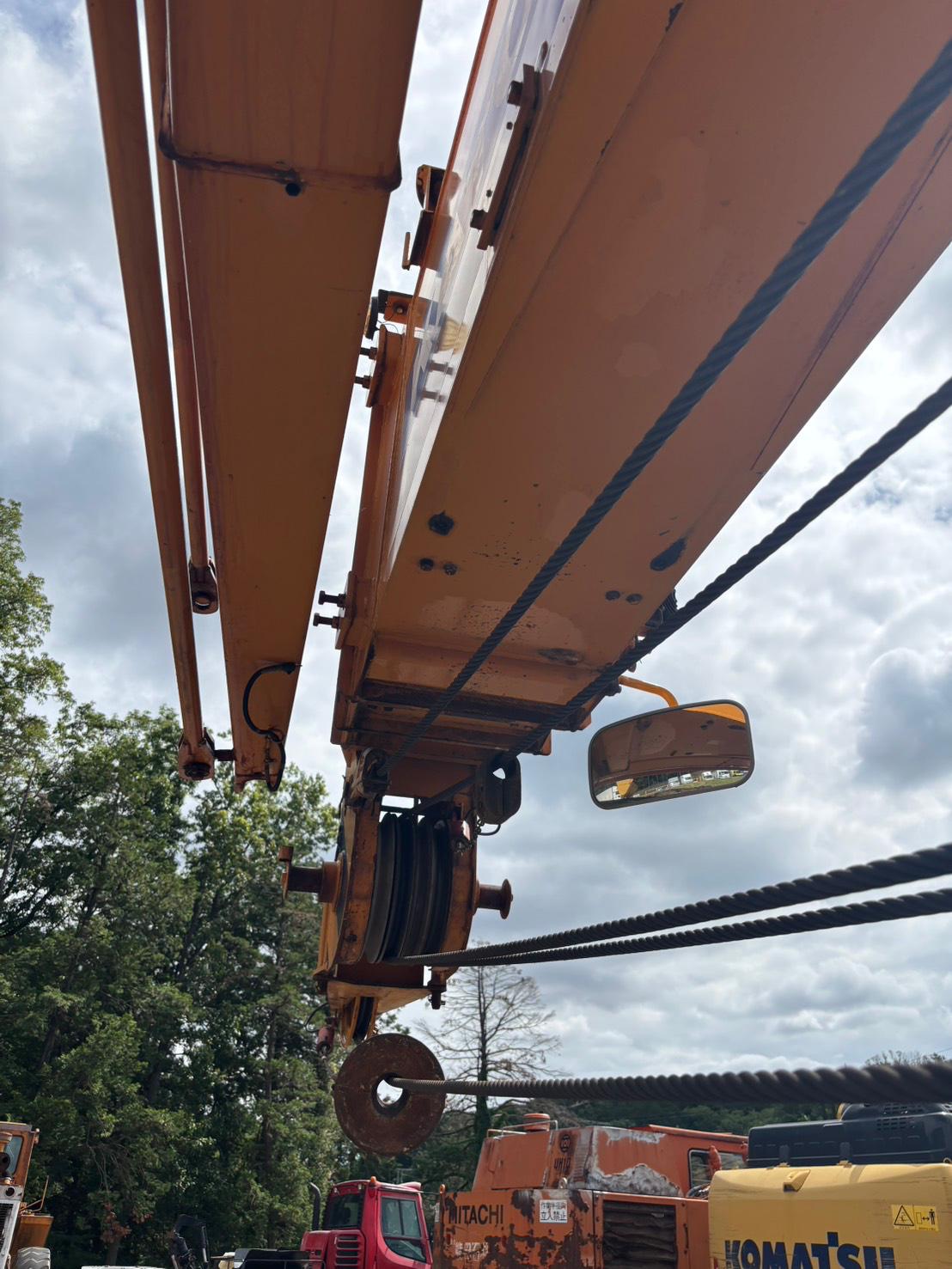

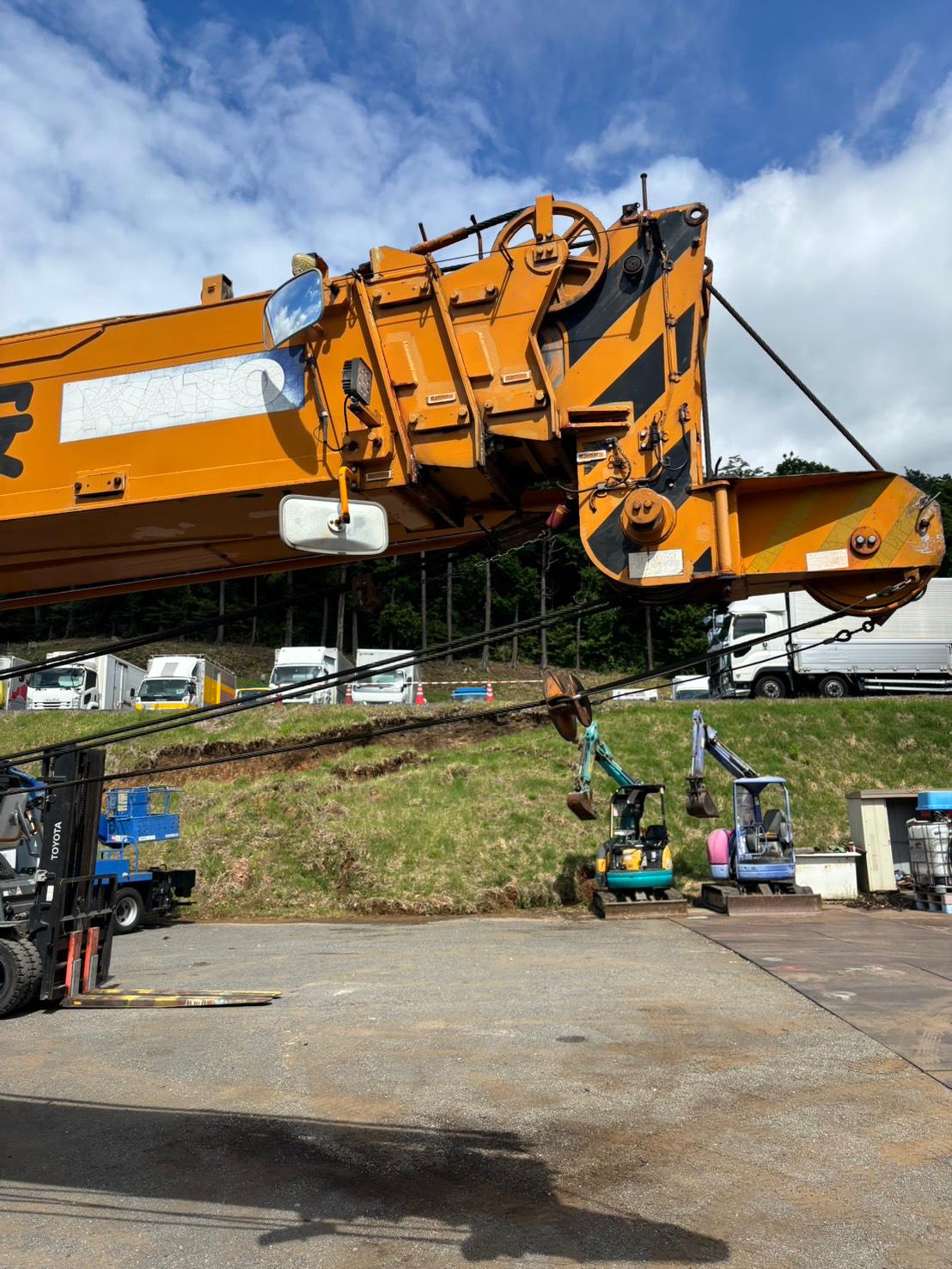

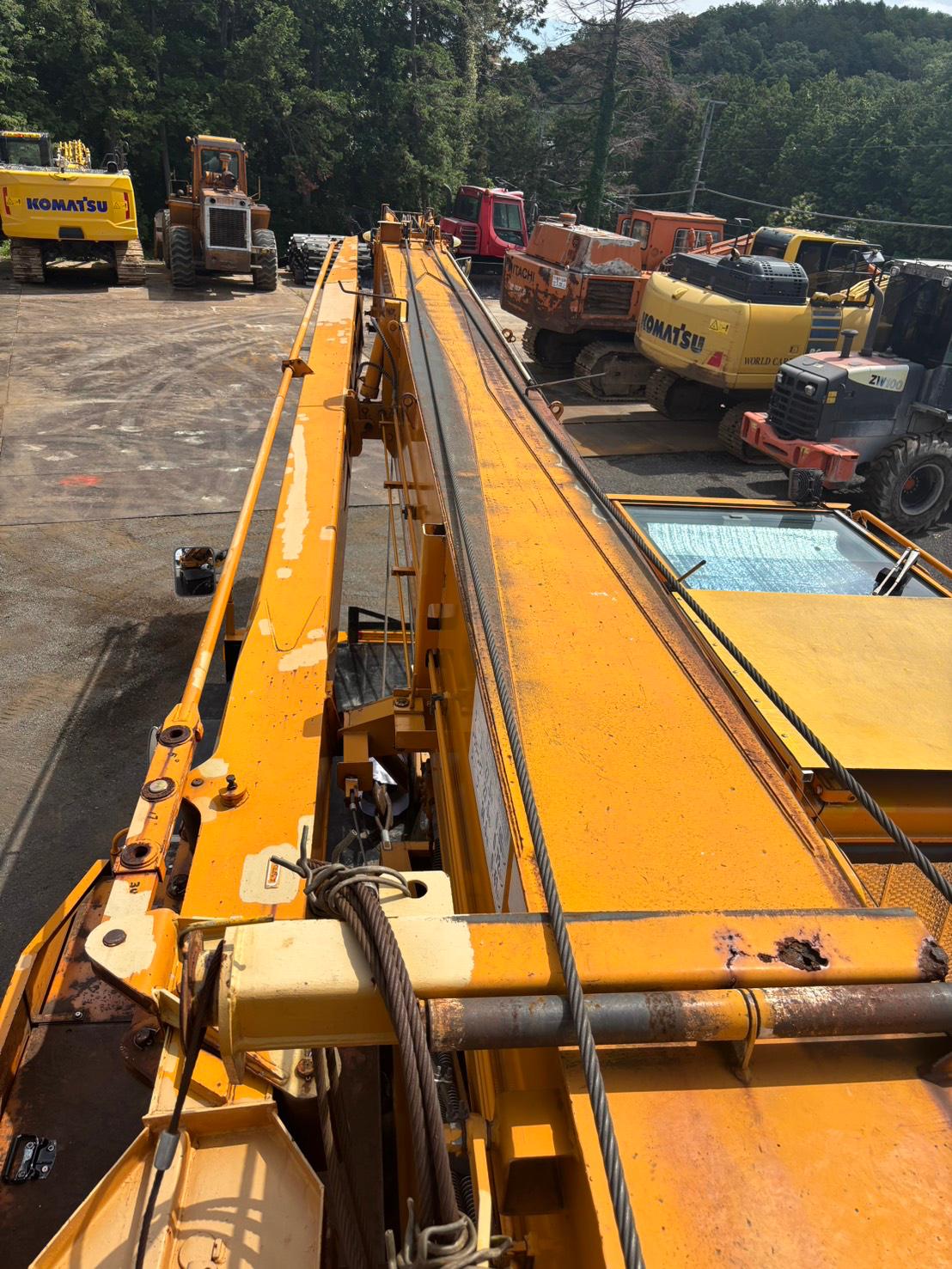

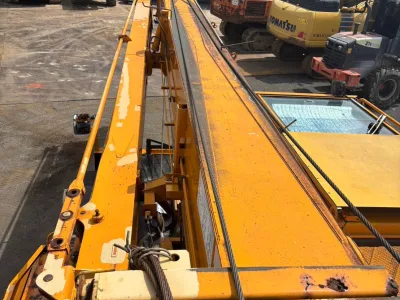

| Main boom length | 9.5-30.5 m |
| Jib length | 7.9-13.0 m |
| Maximum lifting height | 31.2 m on boom / 44.8 m with 13 m jib |
| Boom elevation | 0-83 degrees |
| Swing speed | 2.5 rpm |
| Engine displacement / output | 7,545 cc / 220 PS at 2,800 rpm |
| Transmission | Automatic/manual shift, 4 forward / 2 reverse, Hi/Low |
| Maximum travel speed | 49 km/h |

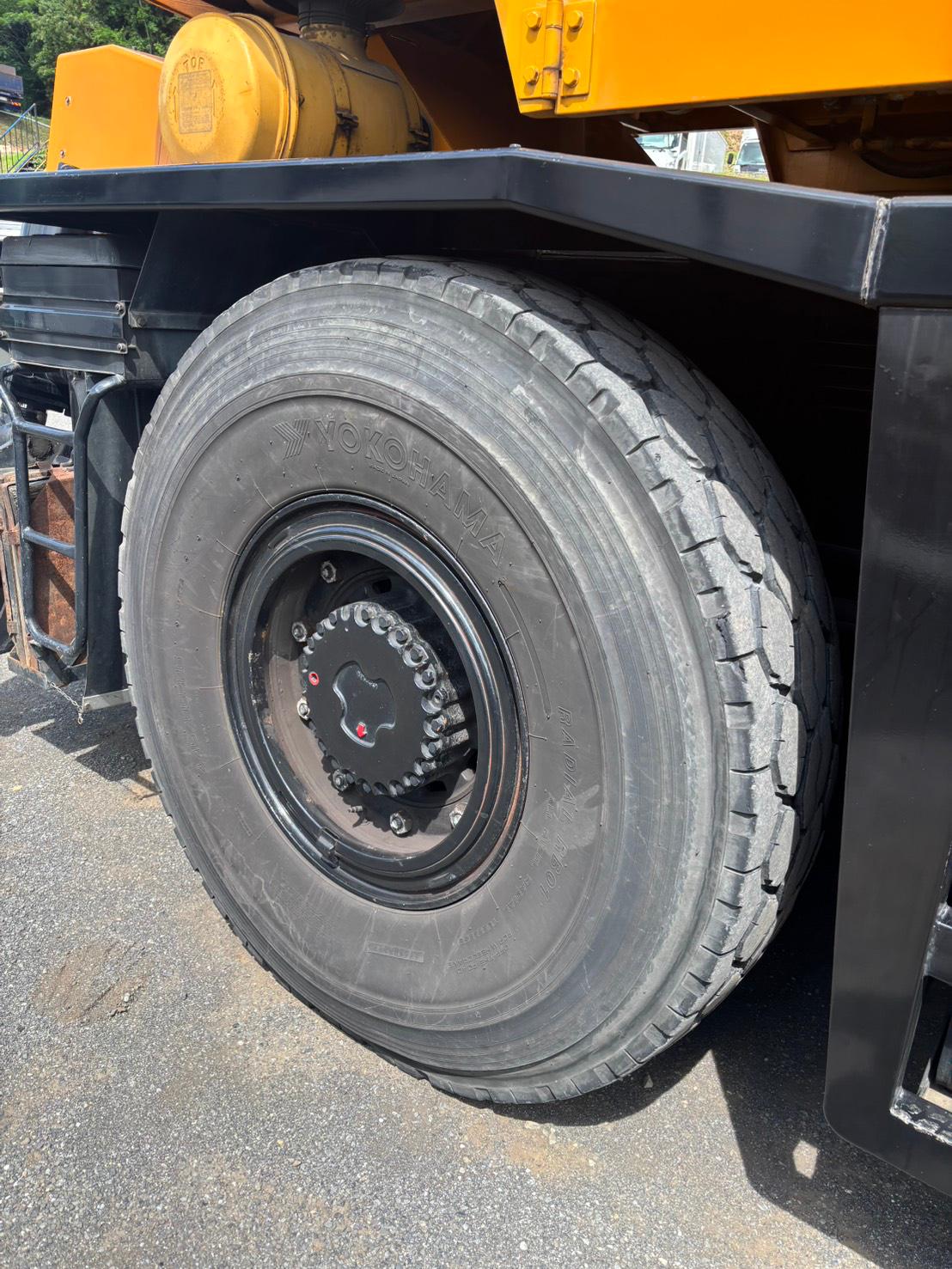

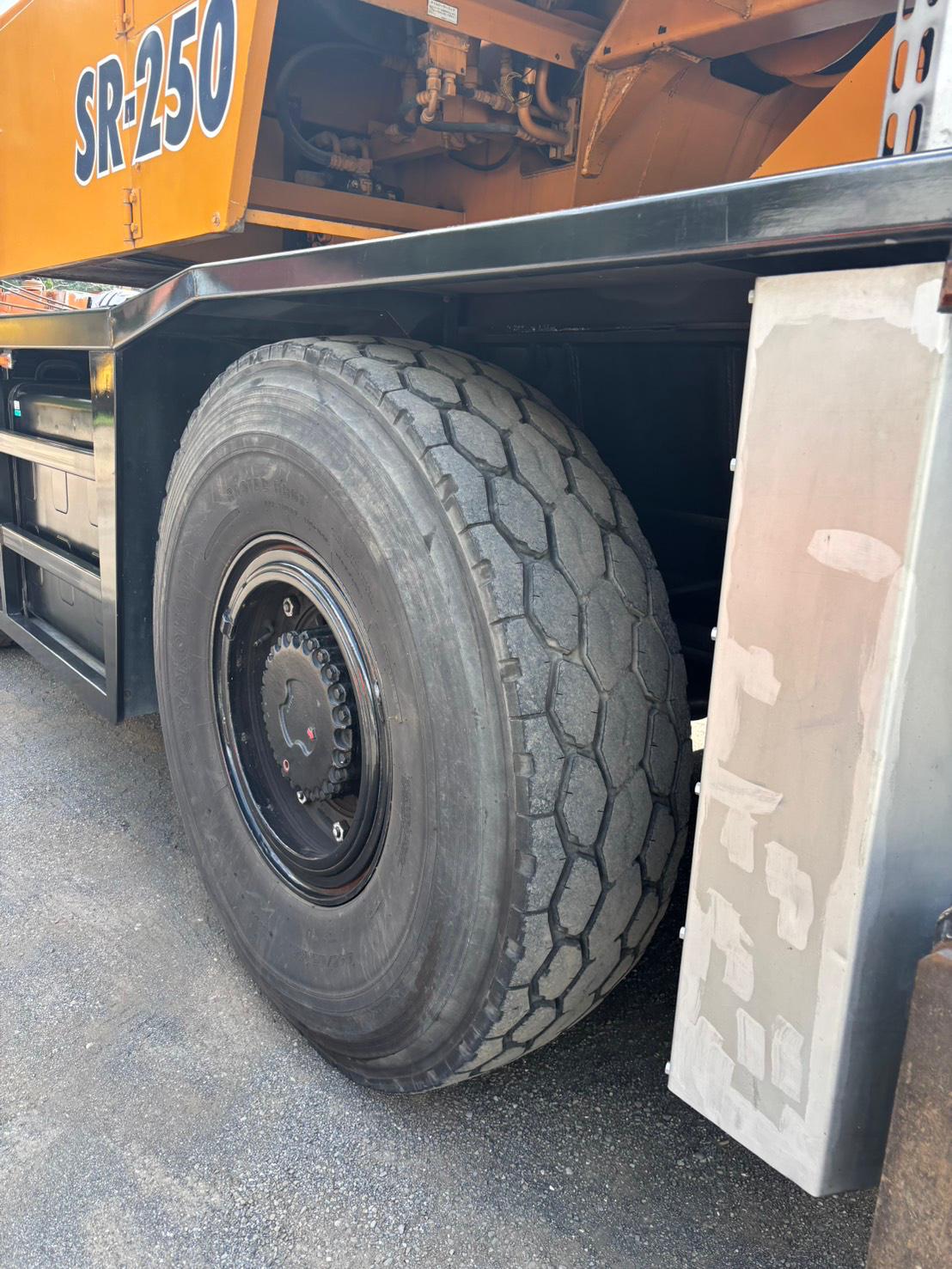

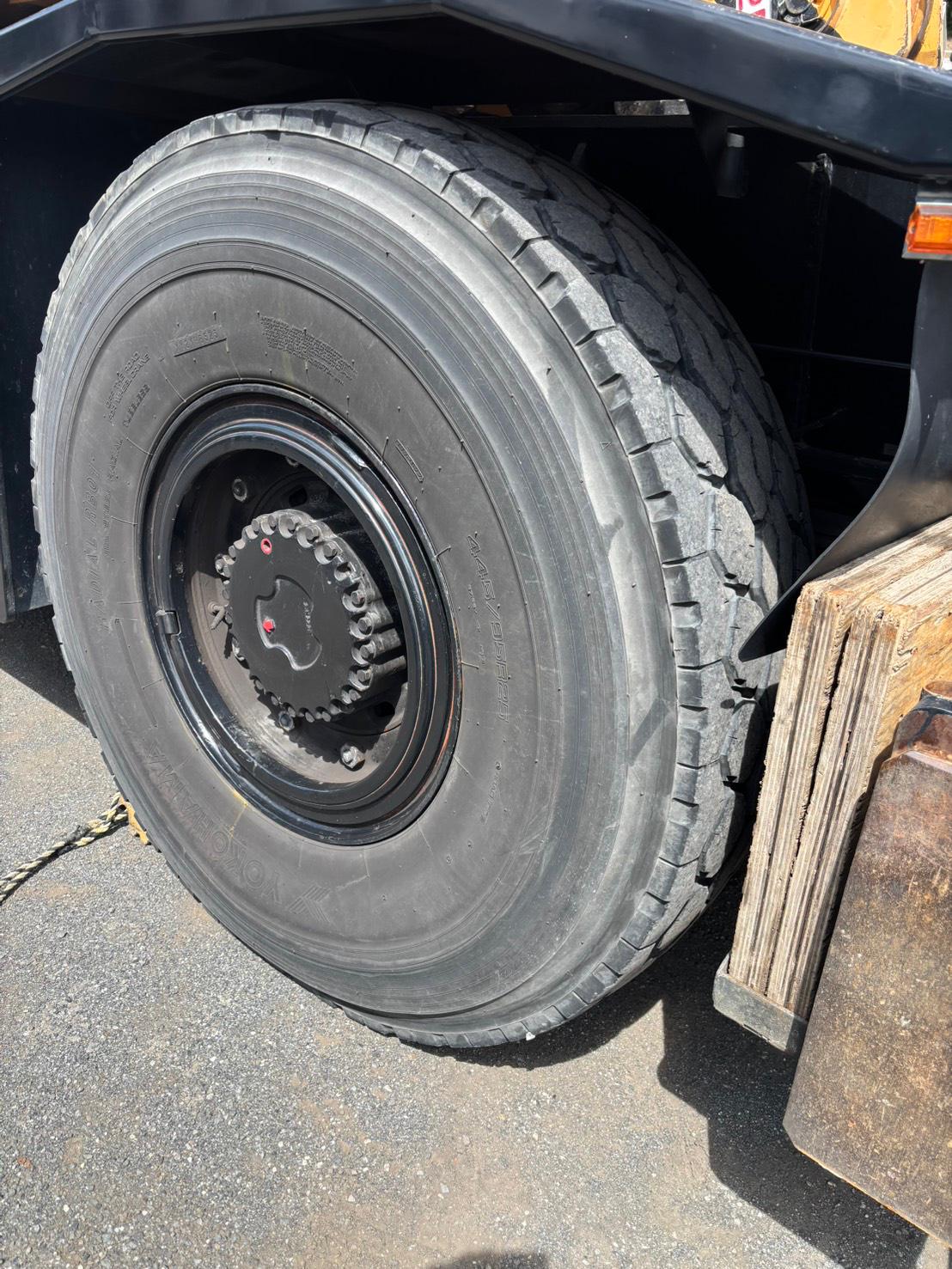

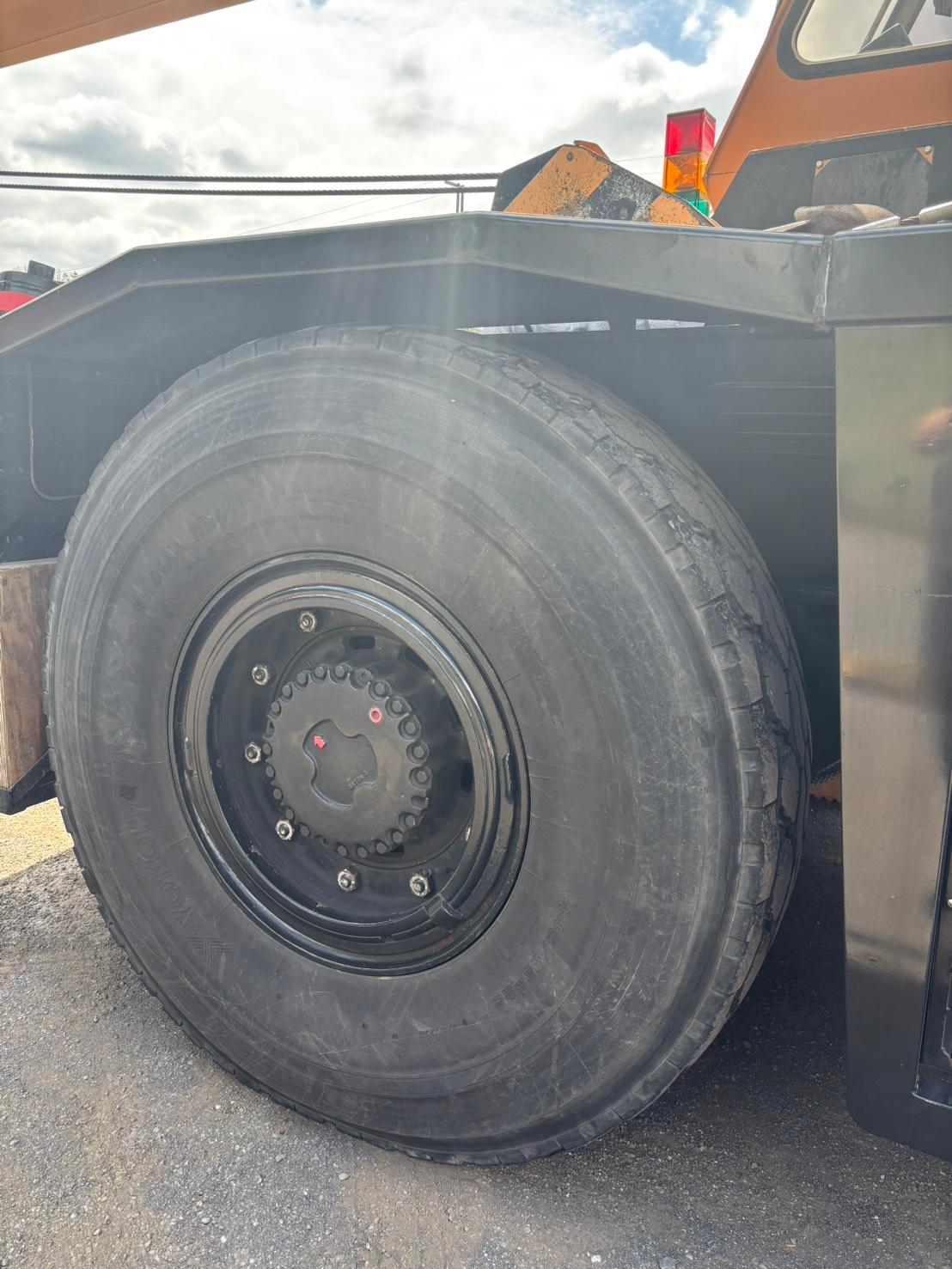

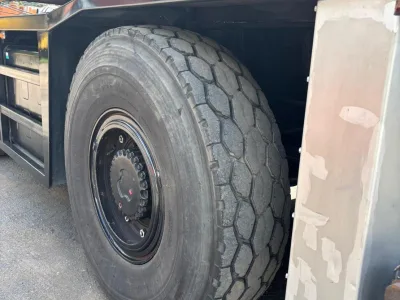

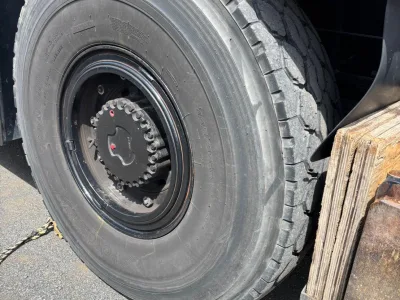

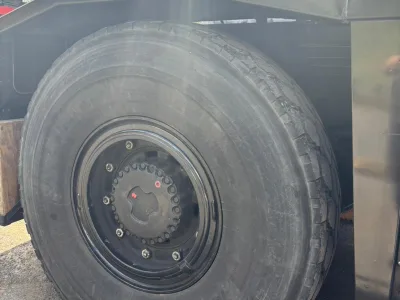

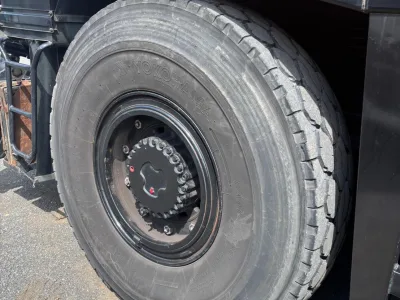

| Tyres | 16.00-25-28PR tubeless |
| Vehicle category / body | Large special vehicle / wheel crane |
|---|---|
| Vehicle weight | 26,300 kg |
| Gross vehicle weight | 26,410 kg |
| Dimensions (L x W x H) | 11.00 x 2.62 x 3.52 m |
| Front / rear axle load | 13,130 kg / 13,170 kg |
| Road vehicle inspection expiry | 10 October 2026 |

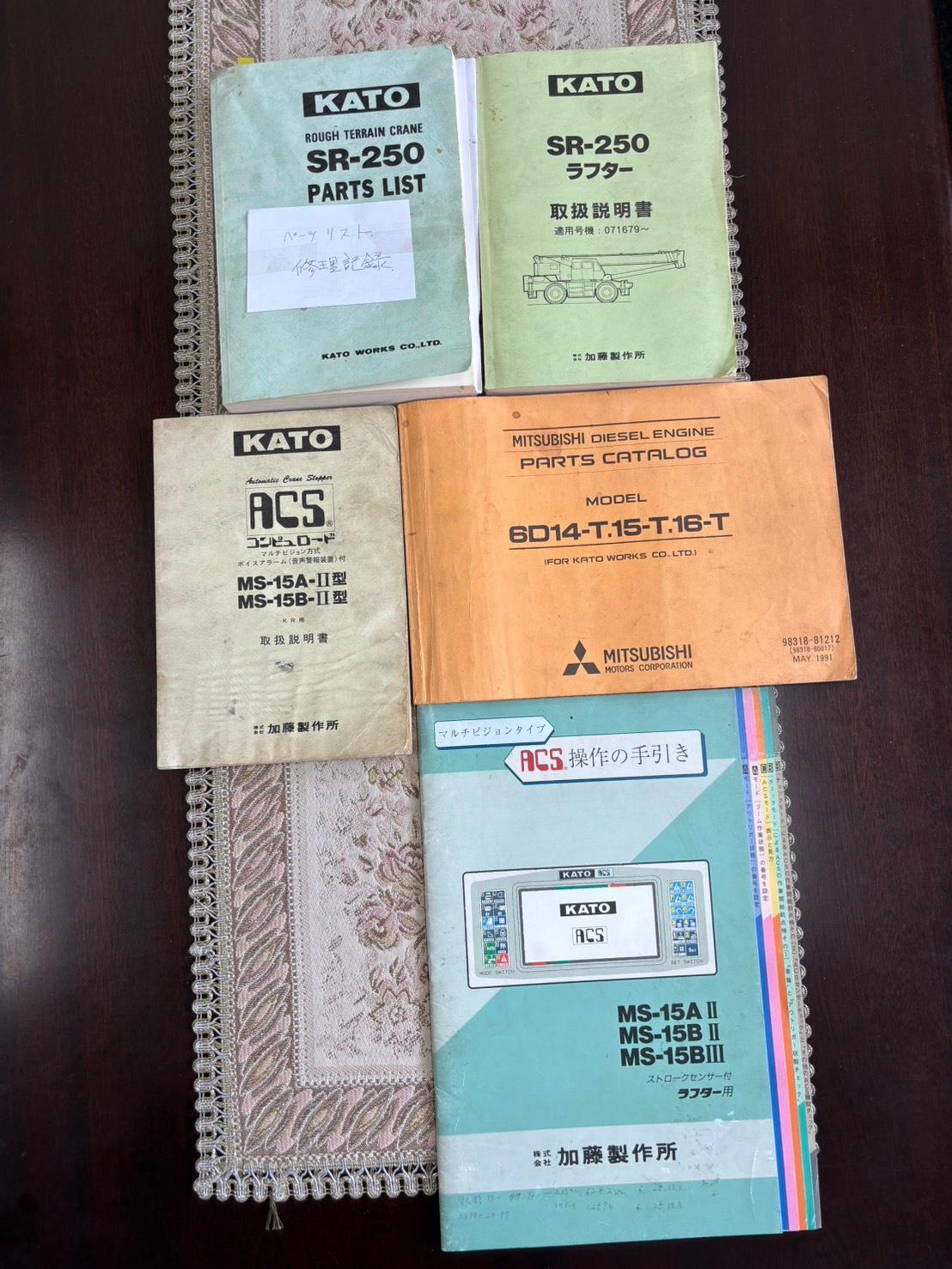

Important: Meter readings are dashboard-indicated and should be independently verified. Reference specifications are taken from KATO documentation for the KR-25H-V/SR-250 and may vary with the installed jib, hook, outrigger and regional configuration. Rated loads must always be checked against the machine's original load chart and current certification before operation. Availability, condition, price and shipping are subject to final confirmation.
GSAT image presentation notice: Registration plates, unrelated commercial signage and personal details in document photographs have been digitally removed or obscured for privacy and clean presentation. The crane itself, its manufacturer/model markings and technical equipment have been preserved.
